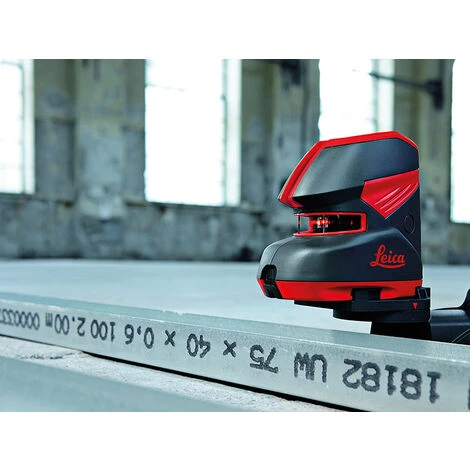

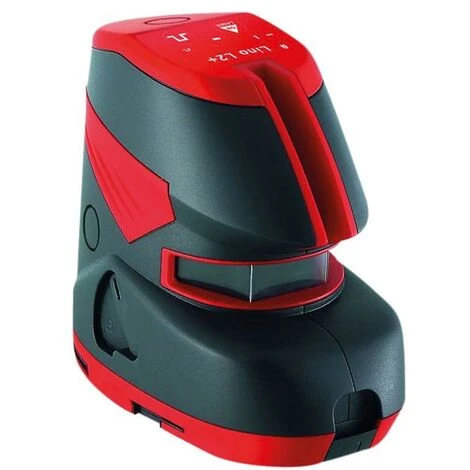

Leica Geosystems Lino L2+ Cross Line Laser LGSLINOL2P

The Leica Lino L2+ projects clear cross lines exactly, quickly and easily – self levelling to compensate for up-to±4° allowing you to concentrate on the job in hand. With a simple two button operation you can switch between horizontal, vertical or cross line projection.

The wide 180° aperture projects a long horizontal line which is perfect for levelling long areas or across multiple walls – for example when laying out a kitchen work surface.

Pulsing line can be selected to increase the laser range with use of a line detector (Leica Reference LLD2) for long distance or outside operation. This also activates the power saving mode, reducing power consumption by 40%.

The laser unit incorporates a lock function which protects the unit during transport and also allows the unit to project lines at an angle by tilting the unit. You can manually switch off the self-levelling using the lock function. The laser line can then be projected at any angle.

The Leica Lino L2+ is supplied with a magnetic mounting bracket which allows the unit to be fixed on a wall surface or mounted on a construction tripod using the 5/8in thread.

Functions: horizontal, vertical or cross line modes, pulse function with power-saving mode and exact 90° angle.

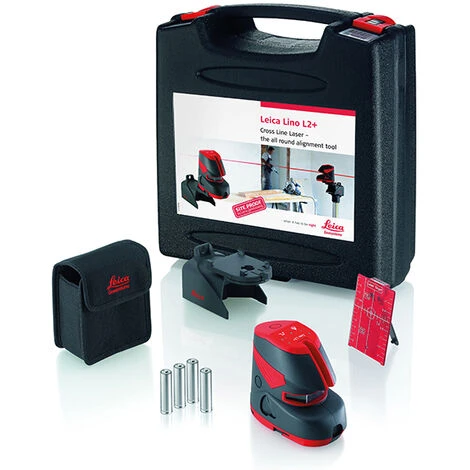

Supplied with: 1 x Target Plate, 1 x Magnetic Multifunction Adaptor, 4 x AA Batteries and 1 x Carrying Pouch.

Specification

Level Accuracy: Horizontal:± 1.5mm @ 5m, Vertical:± 0.75mm @ 3m line length.
Self-Levelling Range: 4°± 0.5°.
Working Range: 15m (30m with receiver).
Power: 4 x AA Batteries 1.5V (Supplied).
Dimensions (HxDxW): 118 x 131 x 76mm.
Tripod Thread: 1/4in.
Protection Class: IP54 rated, against splash & dust damage.
