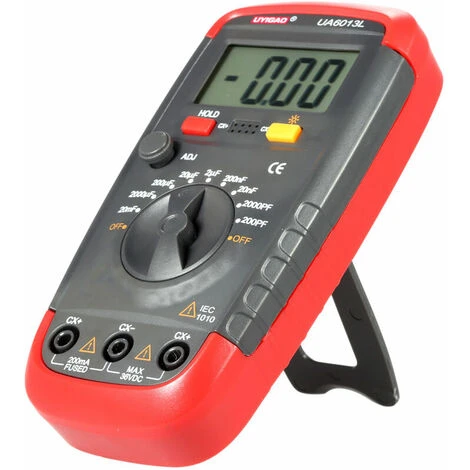

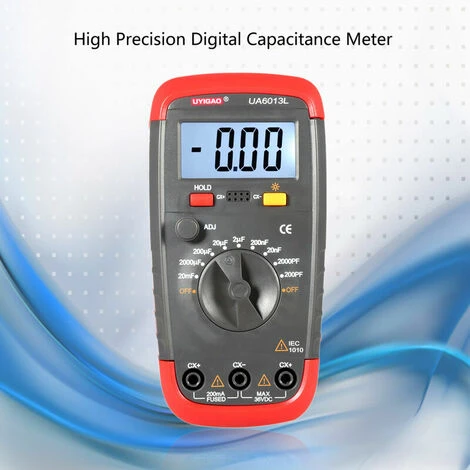

SWYEOOT Capacitor Measuring Tester, High-precision Digital LCD

This is a professional capacity meter with wide measuring range, stable performance and accurate results. With its large LCD screen and white backlight, it is easy to read. Function: This instrument can be used for measuring
Capacity of cable and switch. Adopt automatic reset and polarity selection dual slope CMOS analog-to-digital converter. Wide measurement range, more convenient data retention function. Large screen
LCD with white backlight, easy to read. Maximum display value: 1999 (3 1/2). Low battery indication. Note: Please ensure that all measuring capacitors are discharged before testing. Function: measuring range:
200PF/2NF/20NF/200NF/2？ F/20？ F/200？ F/2000？ F/20mf accuracy: ± 0.5% ± 20 bits (200pF/2nF/20nF/200nF/2? F/20? F/200? F)/± 2.0% ± 20 bits
1NF/10NF/0.1？ F/1？ F/10？ Test frequency: 800Hz (200pF/2nF/20nF/200nF/2? F)/80Hz (20? F)/8Hz (200? F/2000? F/20mF) Power supply: 1 * 9V battery (not included) Item size: 14.5 * 7 * 3cm/5.7 * 2.7 * 1.2 Item weight:

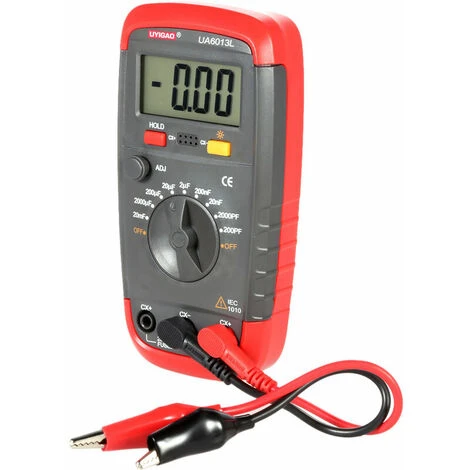

144g/5.1oz Package size: 19.5 * 11 * 5cm/7.7 * 4.3 * 2 Package weight: 215g Package size: 1 * Capacity meter 1 * A pair of test fixtures 1 * User manual
