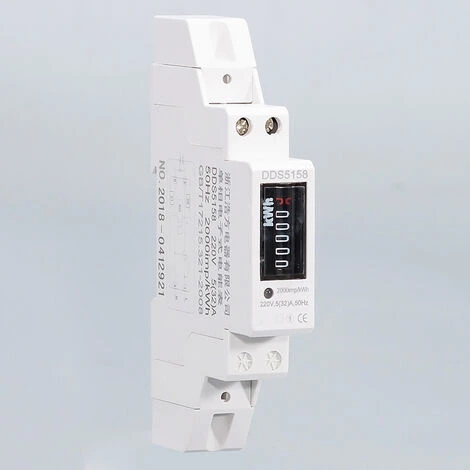

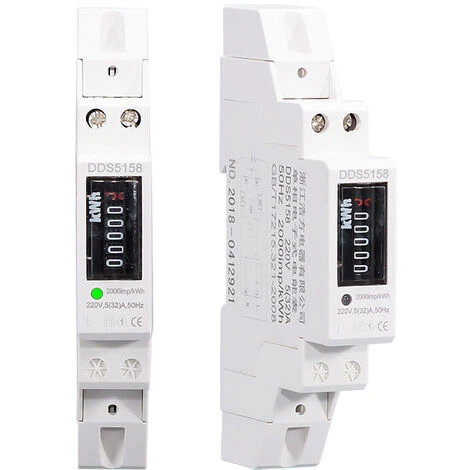

MUFF Electric Meter, Digital LCD 220V Single Phase DIN-Rail Electronic KWh Mete With Low Power Consumption 5(32)A

Electricity meter, digital LCD 220V single-phase DIN rail electronic kilowatt-hour meter -25 ℃ ~ 55 ℃ low power consumption Display mode: meter

[Advantages] The electric energy meter has good anti-electromagnetic interference, low power consumption, high precision, strong overload capacity, high stability, anti-theft and long life.

[Features] The electric energy meter is characterized by high reliability, small size, light weight, beautiful appearance, advanced technology, 35mm DIN standard rail installation

【Application】This rail type electric energy meter is suitable for measuring the rated frequency 50Hz or 60Hz single-phase AC active energy, for indoor fixed installation, suitable for ambient temperature -25℃~55℃, relative humidity ≤ 95%

[Installation Precautions] The meter should be installed in a ventilated and dry place indoors. The meter base plate should be fixed to a rigid fire-resistant, non-vibration-resistant wall and installed in a protective cabinet where there is dirt and potential damage

【Specification】Display mode: LCD, rated voltage: 230V 50Hz, rated current: 5-32A, working temperature: -25℃～55℃, relative humidity: 95% : When the red light is on, it means that the power pulse is detected. When there is a sampling signal, the pulse is on for about 80ms

feature:

The meter fully complies with the relevant technical requirements of GB/T17215.321-2008 national standard and IEC62053 international standard 1 or 2 single-phase electric energy meter, and can directly and accurately measure the active energy of electricity consumption. .

The LCD display shows the total power consumption for 5+1 meters.

Specification:

Number of phases: single phase

Type: Guided

Display mode: counter

Accuracy class: class 1 (equivalent to measurement error <1%)

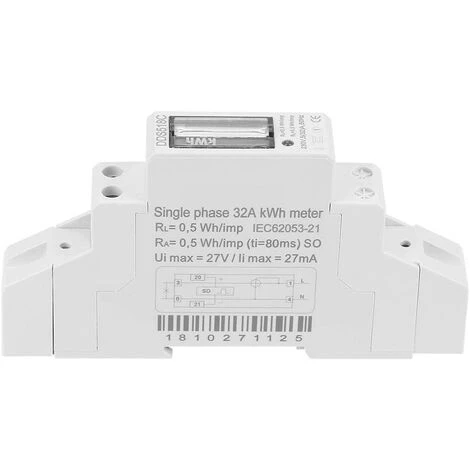

With S0 port 2000Imp/kWh (ti = 80ms)

Installation Precautions:

1. An experienced electrician or professional is required to install the meter.

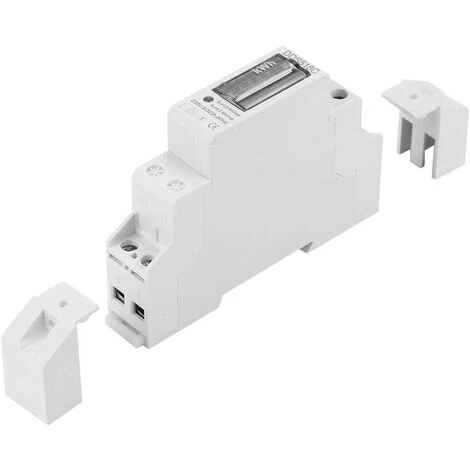

2. The electric energy meter should be installed in a ventilated and dry place indoors, using 35mm DIN standard rail type installation, and the electric energy meter bottom plate should be fixed on the wall of rigid refractory material and non-vibration.

3. Install according to the wiring diagram. It is best to use multi-strand copper wires to avoid abnormality or burning of the meter due to poor contact.

4. After the meter is correctly connected to the power grid, the meter’s power indicator lights up

5. When the electric energy meter is used in areas with more lightning, lightning protection measures should be taken to avoid damage to the electric energy meter by lightning strikes.

Meter load capacity 0.05ib~Imax (direct access)

packing list:

1 x Rail Type Energy Meter
