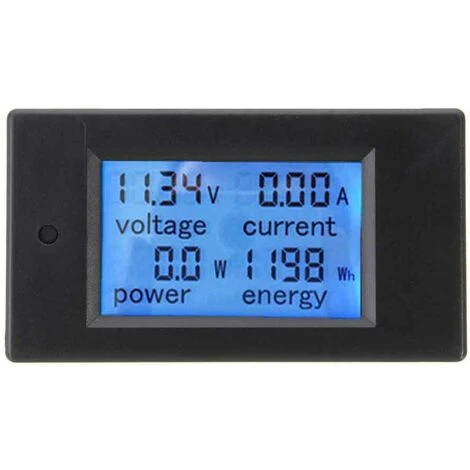

Lowenergie Battery Monitor – 0-100A With Shunt

Description –

DC Current and voltage monitor, can be fitted in panel or stand alone. Ideal for car, solar power system, or general battery monitoring.

Electrical parameter measurement function (voltage, current, active power, energy)

Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).

Power alarm threshold preset function (can set power alarm threshold).

The reset function of energy key.

Store data when power off.

Large-screen LCD (display voltage, current, active power, energy at the same time)

Backlight function.

Precautions –

This module is suitable for indoor use, please do not use outdoors.

Applied load should not exceed the rated power.

Wiring order can’t be wrong.

Specifications –

Working voltage: 6.5 ~ 100VDC

Rated power: 20A/2000W(20A version) 100A/10000W(100A version)

Dimensions 50 x 90mm, cut out if required 44.6 x 84.6mm, depth 24.4mm
