- Torque0.1 Nm
- MaterialPlastic
- Ratchet size1/2
- ManoMano ReferenceME69550132
- Warranty1 year
- Product codeY0059-IT2-230213-5060
Features:
Digital Display: Large screen with a large font which clearly shows the residual power, units, display mode, torque values.
Backlight Function: It is convenient to read the data clearly at night or when the brightness is insufficient.
Preset value and sound and light alarm: preset the value according to the torque to be measured, and when the buzzer is on and the preset target torque value is reached, the buzzer will emit a long beep and the red light will be on.
Easy Operation: adjustable working direction, it can be used in forward and reverse, works with a ratchet for more convenient use, improve work efficiency. (Plate hand needs to be purchased separately)
Three working mode design: supports ‘track’ implementation mode, & #34;peaks” and ‘pre’. preset mode, three working modes switchable.
Four-unit design: There are four units you can switch freely, easy to adjust to Kgf.cm, Nm, Ibf.ft, Ibf. according to your preference.
Auto-off function: automatic shutdown without operation for 2 minutes to prevent excessive power consumption.
Four types are available: you can choose K30, K135, K200, K340 according to your needs, and different models have different measuring ranges.

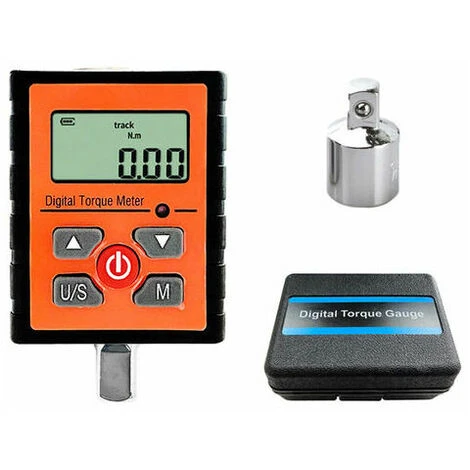

Features:< br/> Name: Digital Torque Meter
Material: Plastic + Metal
Type: K30, K135, K200, K340 (Optional)
Battery: 2* AAA batteries (not included)
Auto shut-off: 2 minutes without operation
Measuring ranges:

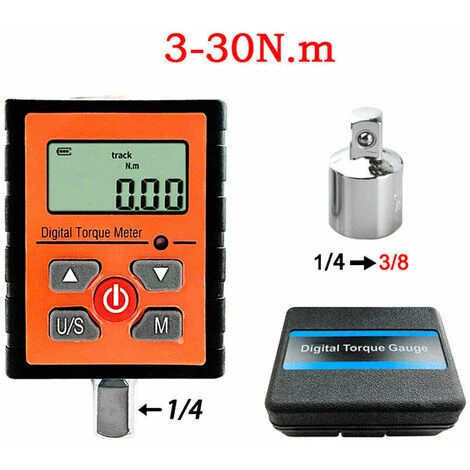

K30: 3-30N.m
K135: 13 ,5-135N.m
K200: 20-200N.m
K340: 30-340N.m
Minimum value: 0.1 Nm
Connector:
K30 Size: 1/4 inch
K135: 3/8 inch
K200: 1/2 inch
K340: 1/2 inch
Item Size: 80 * 45 mm / 3.15 * 1.77 inch Package Size: 125 * 105 * 55mm / 4.92 * 4.13 * 2.17in
Package Weight:
K30: 278g / 9.81oz
K135: 359g / 12 .66 oz
K200: 444g / 15.66 oz
K340: 442g / 15.59 oz
Packing List:
1 * digital torque meter
